RememberMe 实现

约 1286 字大约 4 分钟

2024-08-08

实现 RememberMe 功能

IndexController 登录成功返回当前用户信息

@Controller
public class IndexController {

    /**
     * 从 SecurityContextHolder 获取信息
     * @return
     */
    @RequestMapping(value = "/", method = RequestMethod.GET)
    @ResponseBody
    public String index() {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        return JSON.toJSONString(authentication);
    }

}

开启 rememberMe 功能，只需要配置下 .rememberMe() 即可

/**
 * @ClassName SecurityConfig
 * @Desciption Security 配置
 * @Author MaRui
 * @Date 2023/9/27 15:59
 * @Version 1.0
 */
@Configuration
public class SecurityConfig {

    @Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
        http.authorizeHttpRequests().anyRequest().authenticated()
                .and()
                .formLogin()
                .permitAll()
                .and()
                .rememberMe()
                .and()
                .csrf().disable();
        return http.build();
    }
}

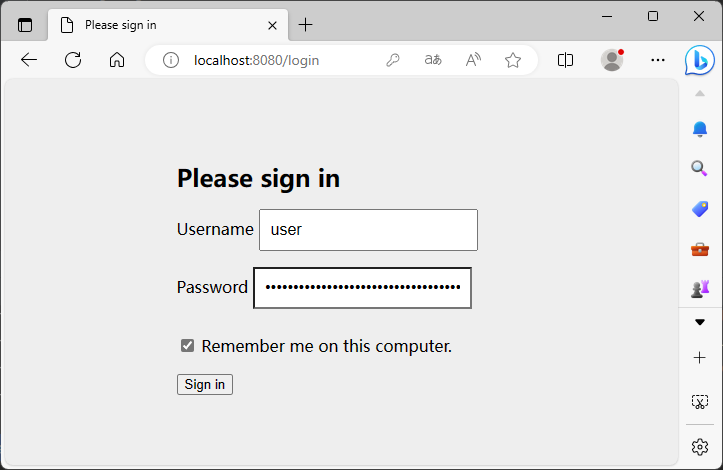

验证一下，访问登录页面 http://127.0.0.1:8080，由于没有配置账号密码，使用默认的 user，以及控制台生成的密码，并勾选 RememberMe

登录成功，返回了用户的认证信息

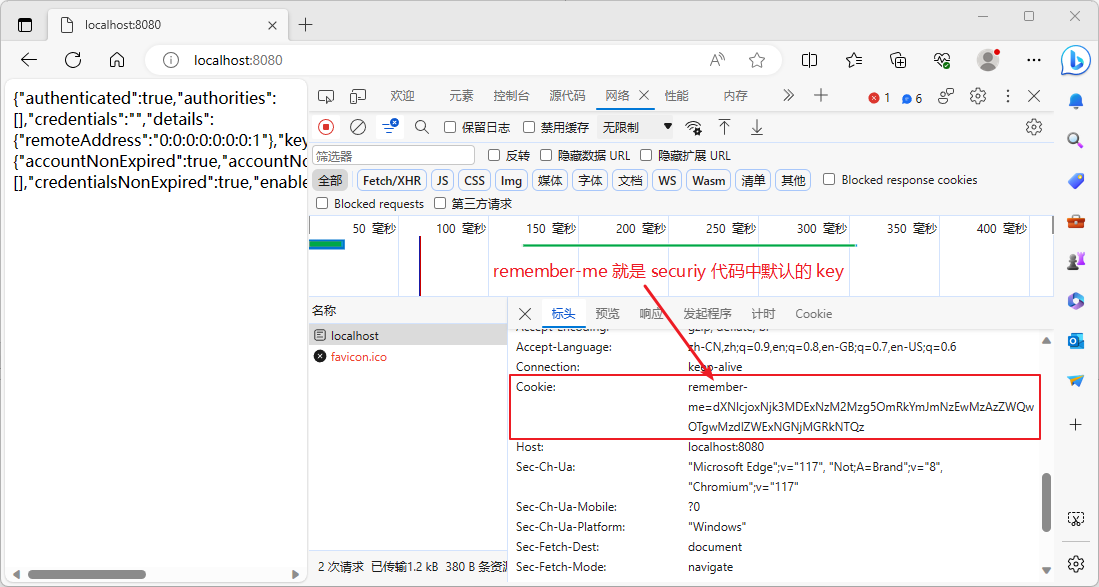

关闭浏览器，重新打开浏览器访问页面 http://127.0.0.1:8080，在 network 的请求中，我们可以看到携带了 cookie 信息完成了自动登录

RememberMe 实现原理分析

首先我们找切入点，每当引入一个新功能的时候，必定会引入一个 configurer , rememberMe 也一样，点击 SecurityConfig 配置类中 .rememberMe() 进入源码

public final class HttpSecurity extends AbstractConfiguredSecurityBuilder<DefaultSecurityFilterChain, HttpSecurity>
		implements SecurityBuilder<DefaultSecurityFilterChain>, HttpSecurityBuilder<HttpSecurity> {

    public RememberMeConfigurer<HttpSecurity> rememberMe() throws Exception {
		return getOrApply(new RememberMeConfigurer<>());
	}
}

RememberMeConfigurer 中我们主要看 init 和 configure 方法

init

validateInput()：校验入参，rememberMeCookieName 不等于默认值 remember-me 则抛出 IllegalArgumentException 异常
getKey()：获取配置的 key 值，没有配置则随机生成。如果没有配置 key 值，系统每次重新启动，页面上都需要重新登录
getRememberMeServices()：用来实现自动登录、处理登录成功和登录失败的逻辑，主要有两个继承
- PersistentTokenBasedRememberMeServices：持久化令牌到数据库
- TokenBasedRememberMeServices：默认的 RememberMeServices
http.authenticationProvider(authenticationProvider)：创建认证器并放入到 providerList 中
initDefaultLoginFilter(http)：自动生成带 RememberMe 选框的登录页面

public final class RememberMeConfigurer<H extends HttpSecurityBuilder<H>>
		extends AbstractHttpConfigurer<RememberMeConfigurer<H>, H> {

    @Override
	public void init(H http) throws Exception {
        // 校验入参，其中 rememberMeCookieName 如果不等于默认的值 `remember-me` 就抛出 IllegalArgumentException 异常
		validateInput();
        // 获取 key 值，如果在 SecurityConfig 没有配置这个 key 值，则初始化时随机 this.key = UUID.randomUUID().toString()
        // 如果没有配置 key 值，系统每次重新启动，页面上都需要重新登录
		String key = getKey();
        // getRememberMeServices，用来实现自动登录、处理登录成功和登录失败的逻辑，
        // SecurityConfig 中不配置 PersistentTokenRepository 则默认使用 TokenBasedRememberMeServices 这个实现
		RememberMeServices rememberMeServices = getRememberMeServices(http, key);
		http.setSharedObject(RememberMeServices.class, rememberMeServices);
		LogoutConfigurer<H> logoutConfigurer = http.getConfigurer(LogoutConfigurer.class);
		if (logoutConfigurer != null && this.logoutHandler != null) {
			logoutConfigurer.addLogoutHandler(this.logoutHandler);
		}
		RememberMeAuthenticationProvider authenticationProvider = new RememberMeAuthenticationProvider(key);
		authenticationProvider = postProcess(authenticationProvider);
        // 创建认证器并放入到 providerList 中
		http.authenticationProvider(authenticationProvider);
        // 自动生成带 RememberMe 选框的登录页面
		initDefaultLoginFilter(http);
	}

}

configure

new RememberMeAuthenticationFilter()：创建了 RememberMeAuthenticationFilter 过滤器
postProcess(rememberMeFilter)：将过滤器注入 IOC 容器
http.addFilter(rememberMeFilter)：在 http 中加入 rememberMe 过滤器

public final class RememberMeConfigurer<H extends HttpSecurityBuilder<H>>
		extends AbstractHttpConfigurer<RememberMeConfigurer<H>, H> {

	@Override
	public void configure(H http) {
        // 创建了 RememberMeAuthenticationFilter 过滤器
		RememberMeAuthenticationFilter rememberMeFilter = new RememberMeAuthenticationFilter(
				http.getSharedObject(AuthenticationManager.class), this.rememberMeServices);
		if (this.authenticationSuccessHandler != null) {
			rememberMeFilter.setAuthenticationSuccessHandler(this.authenticationSuccessHandler);
		}
        // 将过滤器注入 IOC 容器
		rememberMeFilter = postProcess(rememberMeFilter);
        // 在 http 中加入 rememberMe 过滤器
		http.addFilter(rememberMeFilter);
	}

}

看完了RememberMeConfigurer的两个核心方法之后，我们现在知道容器中已经有了 RememberMeAuthenticationFilter 和 RememberMeAuthenticationProvider 现在分别来看下

RememberMeAuthenticationFilter

调用autoLogin方法
- 从cookie提取用户身份，在调用loadUserByUsername获取用户详细信息
- 校验用户身份是否合法(根据不同的令牌存储方式进行不同校验)
- 如果校验通过，则返回Authentication(RememberMeAuthenticationToken)
authenticate
- 如果autoLogin成功，则和前面普通登录一样进行认证
- 因为这里生成的是RememberMeAuthenticationToken，则最终会被RememberMeAuthenticationProvider处理
如果认证返回则进行对应的响应处理

public class RememberMeAuthenticationFilter extends GenericFilterBean implements ApplicationEventPublisherAware {

    private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
			throws IOException, ServletException {
		if (SecurityContextHolder.getContext().getAuthentication() != null) {
			this.logger.debug(LogMessage
					.of(() -> "SecurityContextHolder not populated with remember-me token, as it already contained: '"
							+ SecurityContextHolder.getContext().getAuthentication() + "'"));
			chain.doFilter(request, response);
			return;
		}
        // 调用 autoLogin 方法
        // 1、从 cookie 提取用户身份，在调用 loadUserByUsername 获取用户详细信息
        // 2、校验用户身份是否合法(根据不同的令牌存储方式进行不同校验)
        // 3、如果校验通过，则返回 Authentication(RememberMeAuthenticationToken)
		Authentication rememberMeAuth = this.rememberMeServices.autoLogin(request, response);
		if (rememberMeAuth != null) {
			// Attempt authenticaton via AuthenticationManager
			try {
                // authenticate
                // 如果autoLogin成功，则和前面普通登录一样进行认证
                // 因为这里生成的是RememberMeAuthenticationToken，则最终会被RememberMeAuthenticationProvider处理
				rememberMeAuth = this.authenticationManager.authenticate(rememberMeAuth);
                // 如果认证返回则进行对应的响应处理
				// Store to SecurityContextHolder
				SecurityContext context = SecurityContextHolder.createEmptyContext();
				context.setAuthentication(rememberMeAuth);
				SecurityContextHolder.setContext(context);
				onSuccessfulAuthentication(request, response, rememberMeAuth);
				this.logger.debug(LogMessage.of(() -> "SecurityContextHolder populated with remember-me token: '"
						+ SecurityContextHolder.getContext().getAuthentication() + "'"));
				this.securityContextRepository.saveContext(context, request, response);
				if (this.eventPublisher != null) {
					this.eventPublisher.publishEvent(new InteractiveAuthenticationSuccessEvent(
							SecurityContextHolder.getContext().getAuthentication(), this.getClass()));
				}
				if (this.successHandler != null) {
					this.successHandler.onAuthenticationSuccess(request, response, rememberMeAuth);
					return;
				}
			}
			catch (AuthenticationException ex) {
				this.logger.debug(LogMessage
						.format("SecurityContextHolder not populated with remember-me token, as AuthenticationManager "
								+ "rejected Authentication returned by RememberMeServices: '%s'; "
								+ "invalidating remember-me token", rememberMeAuth),
						ex);
				this.rememberMeServices.loginFail(request, response);
				onUnsuccessfulAuthentication(request, response, ex);
			}
		}
		chain.doFilter(request, response);
	}
}

RememberMeAuthenticationProvider

这里的逻辑只做了一步，校验key的hashCode是否一致，如果一致，则校验通过

public class RememberMeAuthenticationProvider implements AuthenticationProvider, InitializingBean, MessageSourceAware {

    @Override
	public Authentication authenticate(Authentication authentication) throws AuthenticationException {
		if (!supports(authentication.getClass())) {
			return null;
		}
		if (this.key.hashCode() != ((RememberMeAuthenticationToken) authentication).getKeyHash()) {
			throw new BadCredentialsException(this.messages.getMessage("RememberMeAuthenticationProvider.incorrectKey",
					"The presented RememberMeAuthenticationToken does not contain the expected key"));
		}
		return authentication;
	}
}
